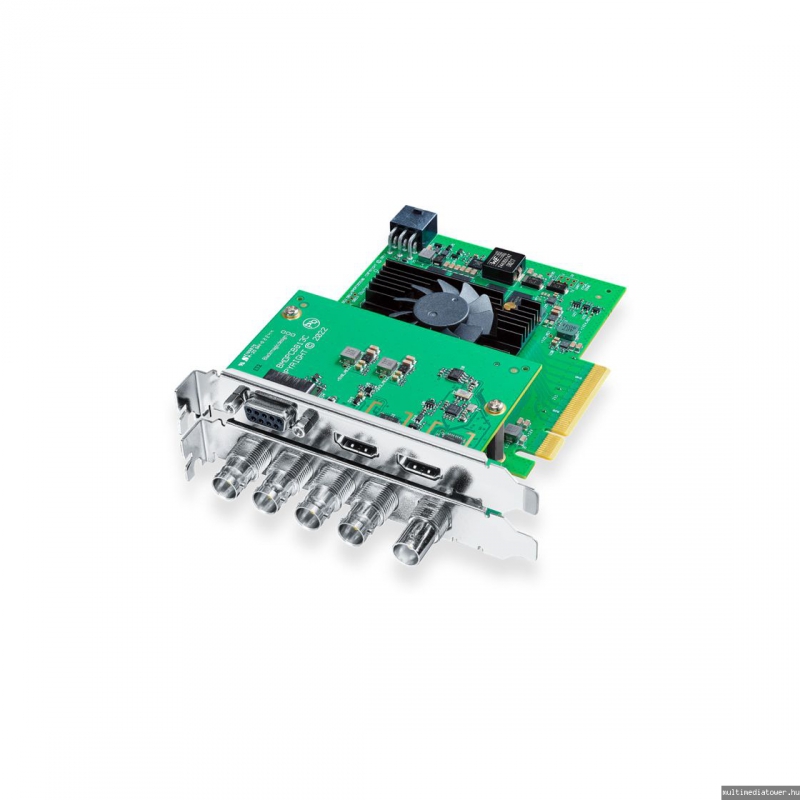

 Blackmagic Design DeckLink 8K Pro G2
Blackmagic Design DeckLink 8K Pro G2
PCI-E 8x aljzatba tehető digitalizáló kártya, 8K kompatibilis
Ezt a terméket 2026. május 27. óta forgalmazzuk.
István út 32.: rendelhető
Termék információ
A DeckLink 8K Pro G2 négy kétirányú 12G-SDI plusz HDMI 2.1 csatlakozót tartalmaz, amelyek támogatják az összes SD, HD, Ultra HD, 4K és 8K szabványt, így kiváló professzionális 8K PCIe rögzítő- és lejátszókártya játékfilmek gyártásához. Használhatja az ingyenes DeckLink SDK-t is akár 4 videó stream konfigurálására tetszőleges irányban, formátumban vagy képkockasebességgel, ami lehet akár 4K DCI 60p is, a valódi többcsatornás rögzítéshez és lejátszáshoz. A DeckLink 8K Pro G2 támogatja a 8 és 10 bites YUV 4:2:2-t, valamint a 10 és 12 bites RGB 4:4:4-et teljes Rec. 2020 színtérrel. Ezenkívül akár 120 képkocka/másodperc sebességgel dolgozhat HD-ben és 4K-ban, illetve 60 képkocka/másodperc sebességgel 8K-ban. A négy 12G-SDI csatlakozó akár 64 beágyazott hangcsatornát is támogat. A DeckLink 8K Pro G2 tökéletes a nagy felbontású, nagy képkockasebességű és nagy dinamikatartományú munkafolyamatok következő generációjához!
Technikai információ
Description
DeckLink 8K Pro G2 includes four bi-directional 12G-SDI plus HDMI 2.1 connections to support all SD, HD, Ultra HD, 4K and 8K standards, making it the ultimate professional 8K PCIe capture and playback card for designed for feature film production. You can also use the free DeckLink SDK to configure up to 4 video streams in any direction, format or frame rate up to 4K DCI 60p, for true multi channel capture and playback. DeckLink 8K Pro G2 supports 8 and 10-bit YUV 4:2:2, as well as 10 and 12-bit RGB 4:4:4 with full Rec. 2020 color. In addition, you can work at up to 120 frames per second in HD and 4K, and up to 60 frames per second in 8K. The four 12G-SDI connections support up to 64 channels of embedded audio. DeckLink 8K Pro G2 is perfect for the next generation of high resolution, high frame rate and high dynamic range workflows!
Connections
SDI Video Inputs
4 x bi-directional 12G‑SDI
Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
SDI Video Outputs
4 x bi-directional 12G‑SDI
Supports SD/HD/2K/4K/8K, single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
SDI Audio Inputs
16 Channels embedded in SD/HD/2K.
64 Channels embedded in 4K/8K.
SDI Audio Outputs
16 Channels embedded in SD/HD/2K.
64 Channels embedded in 4K/8K.
HDMI Video Inputs
1 x HDMI 2.1
HDMI Video Outputs
1 x HDMI 2.1
HDMI Audio Inputs
8 Channels embedded in TMDS.
32 Channels embedded in FRL.
HDMI Audio Outputs
8 Channels embedded in TMDS.
32 Channels embedded in FRL.
Sync Input
Tri-Sync or Black Burst.
Remote Control
1 x RS‑422 Out
Computer Interface
PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.
