Video and Audio

IP Video Input    16-Channel

Incoming Bandwidth    80 Mbps

Outgoing Bandwidth    60 Mbps

HDMI Output Resolution    1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output Resolution    1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode    HDMI/VGA Simultaneous Output

Multi-View Display    1/4/6/8/9/16

DECODING

Audio Compression    G.711A/G.711U/G.726

Decoding Format    H.265+/H.265/ H.264+/H.264

Video Compression    H.265+/H.265/ H.264+/H.264

Record Resolution    8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Live View/Playback Resolution    8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/

720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback    16-Channel

Capability    1-ch @ 8 MP, 2-ch @ 4 MP, 4-ch @ 2 MP

Record Management

Record Mode    • Manual Recording

• Scheduling Recording

• Motion Detection Recording

Playback Mode    • Instant Playback

• Regular Playback

• Tag Playback

• Event Playback

Backup Mode    • Regular Backup

• Video Clip Backup

Playback Function    • Play

• Pause

• Stop

• Fast Forward

• Fast Backward

• Play By Frame

• Full Screen

• Video Clip

• Export Clip

• Digital Zoom

• Lock Recording

• Audio On/Off

Hálózat

Szabvány    TCP/IP, DHCP, DNS, NTP, UPnP

Mobile Phone Access    Android, iOS

Incoming Bandwith    80 Mbps

Outgoing Bandwidth    60 Mbps

Web Browser    Chrome (57+), Firefox (52+), Edge (91+)

Interoperability    ONVIF, CGI

External Interface

Network Interface    1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface    2× USB 2.0

Audio Interface    1, Audio In; 1, Audio Out

Alarm In/Out    N/A

Serial Interface    N/A

Power    1× DC Jack

Reset Button    1

Speaker    N/A

eSATA    N/A

HDMI    1

VGA    1

HARD DISK

SATA    1 SATA Interface

Capacity    Up to 10 TB

Alarm

General Alarm    • Motion Detection

• Video Tampering

• Line-Crossing Detection

• Intrusion Detection

• Region Entering Detection

• Region Exiting Detection

• Object Abandoned/Removal Detection

• Vehicle Detection

• Human Detection

Anomaly Alarm    • Video Loss

• Offline and IP Conflict

• Disk Exception

• Login Exception

Alarm Linkage    • Recording

• White Light Alarm

• Buzzer

• Log

• Audible Alarm

Fizikai kezelőfelület

Hálózati csatlakozás    1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface    2× USB 2.0

Általános

Operating Temperature    -10–55 °C

Storage Temperature    -40–70 °C

Storage Humidity    10%~90% RH Non-Condensing

Tömeg    578.5 g

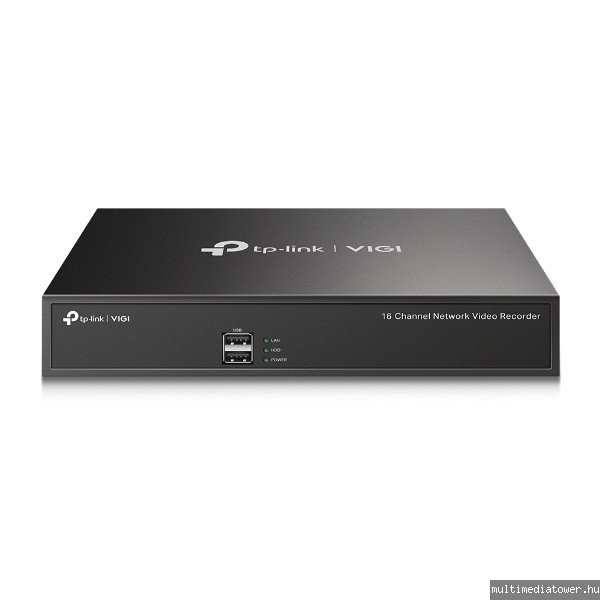

Csomagolás tartalma    VIGI Network Video Recorder

Power Adapter

HDD Screws

Mouse

Quick Installation Guide

Working Temperature    • NVR: -10–55 °C

• Power Adapter: 0–40 °C

Working Humidity    10%~90% RH Non-Condensing

Méretek (Sz x Mé x Ma)    246.2 × 148.2 × 45 mm

Külső tápellátás    DC 12V/1.5A

Net Weight    0.6 Kg

Gross Weight    1.06 Kg

Power Consumption    4.25 W (without disk)

Certifications    CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, IC, HDMI

Videó/Kép

Video Input    16-Channel IP Video Input, up to 8 MP Resolution

Video Output    Recording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

HDMI/VGA

Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz
