Technikai információ

Hálózat

Wi-Fi Protocol     Wi-Fi 6E



Vezeték nélküli

Standards and Protocols     IEEE 802.11ax 6 GHz,

IEEE 802.11ax/ac/n/a 5 GHz,

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds     AXE5400

6 GHz: 2402 Mbps (802.11ax)

5 GHz: 2402 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range     2-3 Bedroom Houses6× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas



Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range



High-Power FEM

Improves transmission power to strengthen signal coverage

WiFi Capacity     Very HighTri-Band

Allocate devices to different bands for optimal performance



OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients



Airtime Fairness

Improves network efficiency by limiting excessive occupation



DFS

Access an extra band to reduce congestion



6 Streams

Connect your devices to more bandwidth

Working Modes     Router Mode

Access Point Mode



Biztonság

Network Security     SPI Firewall

Access Control

IP & MAC Binding

Application Layer Gateway



HomeShield SecurityReal-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network     1× 6 GHz Guest Network,

1× 5 GHz Guest Network,

1× 2.4 GHz Guest Network

VPN Server     OpenVPN Server

PPTP VPN Server

L2TP VPN Server

VPN Client     Open VPN Client

PPTP VPN Client

L2TP VPN Client

WiFi Encryption     WPA,

WPA2,

WPA3,

WPA/WPA2-Enterprise (802.1x)



HARDWARE

Processor     1.7 GHz Quad-Core CPU

Ethernet Ports     1× Gigabit WAN Port

4× Gigabit LAN Ports

USB Support     1× USB 3.0 Port



Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32



Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server

Buttons     Wi-Fi On/Off Button

Power On/Off Button

LED On/Off Button

WPS Button

Reset Button

Power     12 V ⎓ 2.5 A



SOFTWARE

Protocols     IPv4

IPv6

Service Kits     HomeShield

Learn More>

OneMesh™     OneMesh™ Supported

Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.

Learn More>

All OneMesh Products>

EasyMesh     Mesh networking creates smooth, fast, stable roaming. Archer C50 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.

Learn More>

Parental Controls     HomeShield Parental ControlsCustom Profiles

Professional Content Filter Library

Family Time

Bedtime

Off Time

Time Rewards

Family Online Time Ranking

Pause the Internet

Weekly and Monthly Reports

WAN Types     Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service     QoS by Device

Cloud Service     Auto Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding     Port Forwarding

Port Triggering

DMZ

UPnP

Virtual Server

IPTV     IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP     Address Reservation

DHCP Client List

Server

DDNS     TP-Link

NO-IP

DynDNS

Management Features     Tether App

Webpage



OTHER

System Requirements     Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled

browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications     FCC, RoHS

Environment     Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing



TEST DATA

WiFi Transmission Power     FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz)

CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz)

WiFi Reception Sensitivity     2.4 GHz:

11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm

11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm

5 GHz:

11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm

11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm

11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm

11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm

6 GHz:

11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm

11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm

11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm

11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm



PHYSICAL

Dimensions (W×D×H)     10.7 × 5.8 × 1.9 in

(272.5 × 147.2 × 49.2 mm)

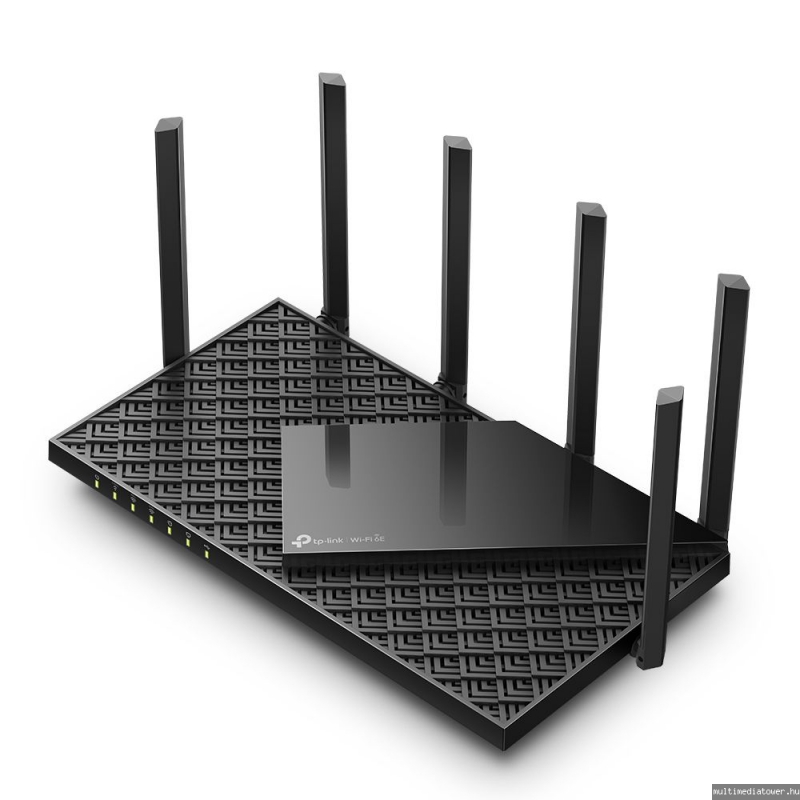

Package Content     Wi-Fi Router Archer AXE75

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
